Tamper Resistant 15A GFCI Electrical Outlet With LED Indicator
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | No Brand |
| Certification | ETL |
| Model Number | KG-A01 |
| Minimum Order Quantity | 50pcs |
| Price | 4.8-7.9USD |
| Packaging Details | Neutral user manual and color box |
| Delivery Time | With 15-20 Days |
| Payment Terms | T/T |
| Supply Ability | 8000pcs/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Trip Level | 4-6mA | Voltage | 125V 60Hz |
|---|---|---|---|
| Installation Type | Wall Mount | Operating Temperature | -20-66C |
| Insulation Resistance | 500MΩ | Grounding | Self-grounding |
| Trip Time | 0.025s | Material | PC+ABS |
| Rating Current | 15A | ||
| Highlight | 15A GFCI Electrical Outlet,Tamper Resistant GFCI Electrical Outlet,LED Indicator GFCI Electrical Outlet |
||
Product Description

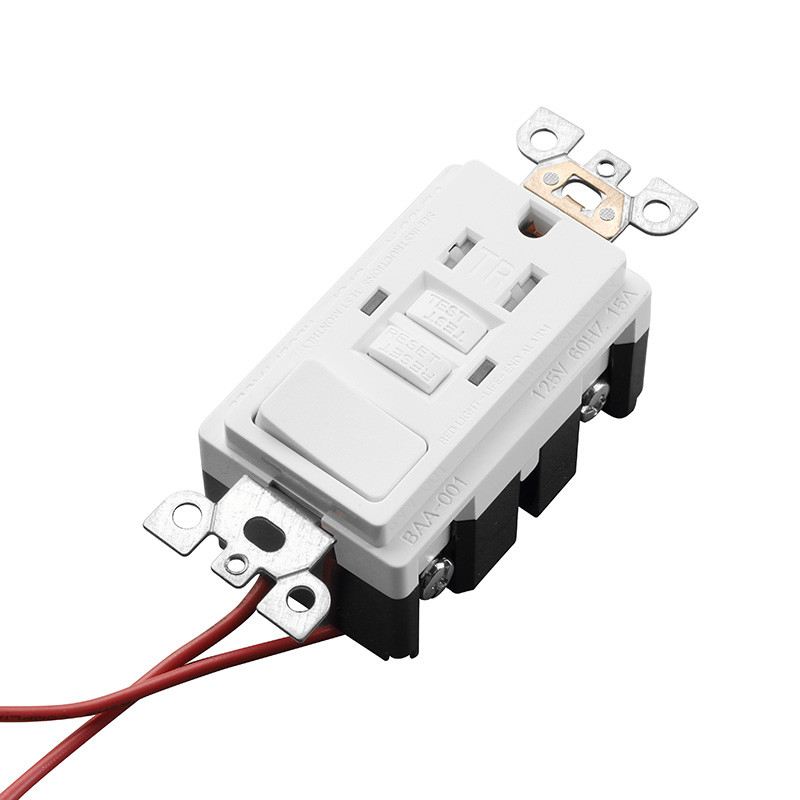

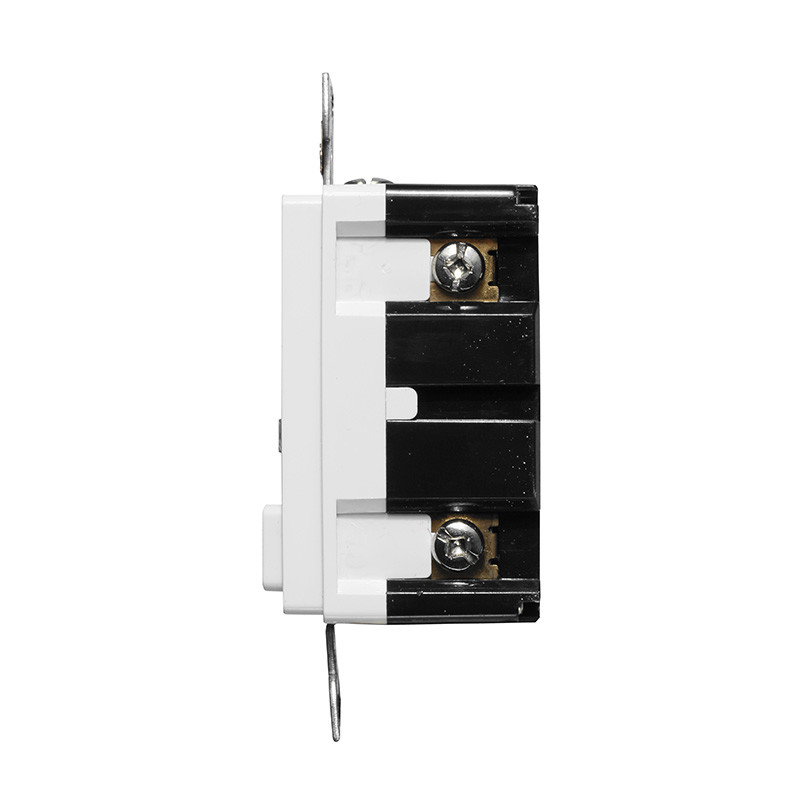

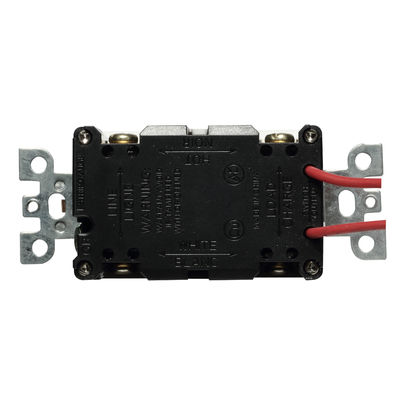

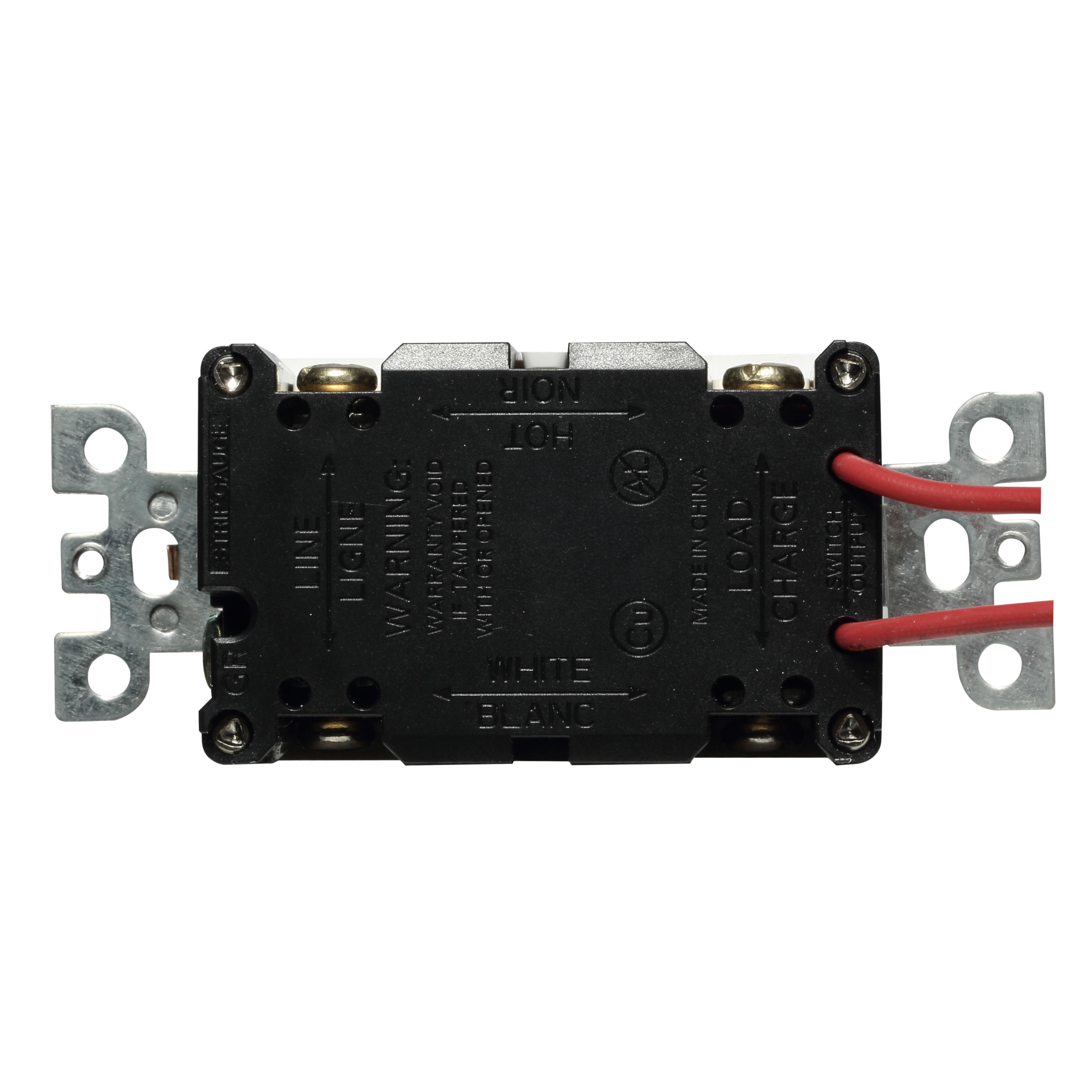

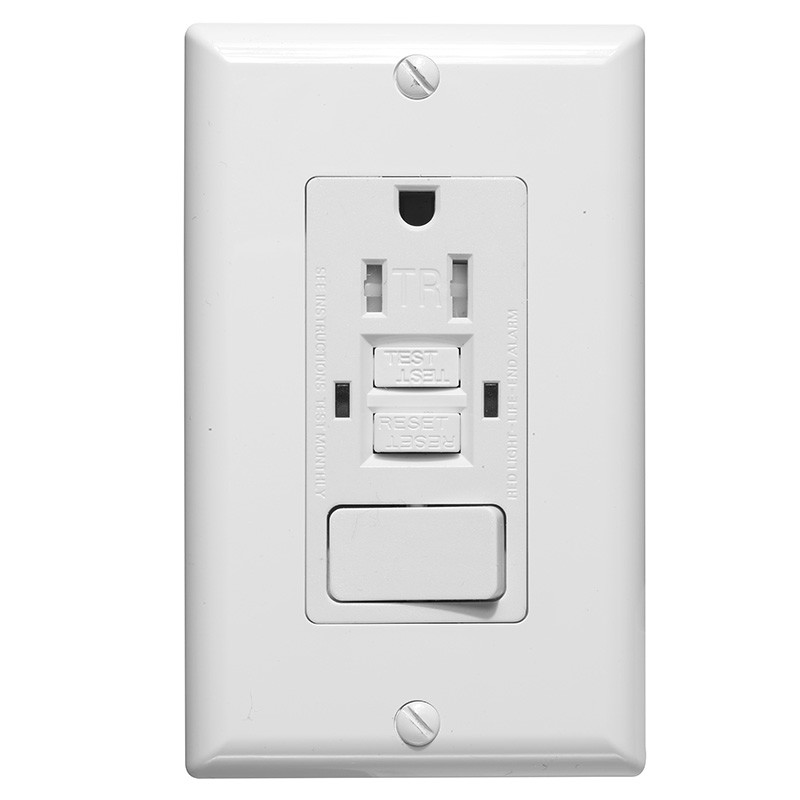

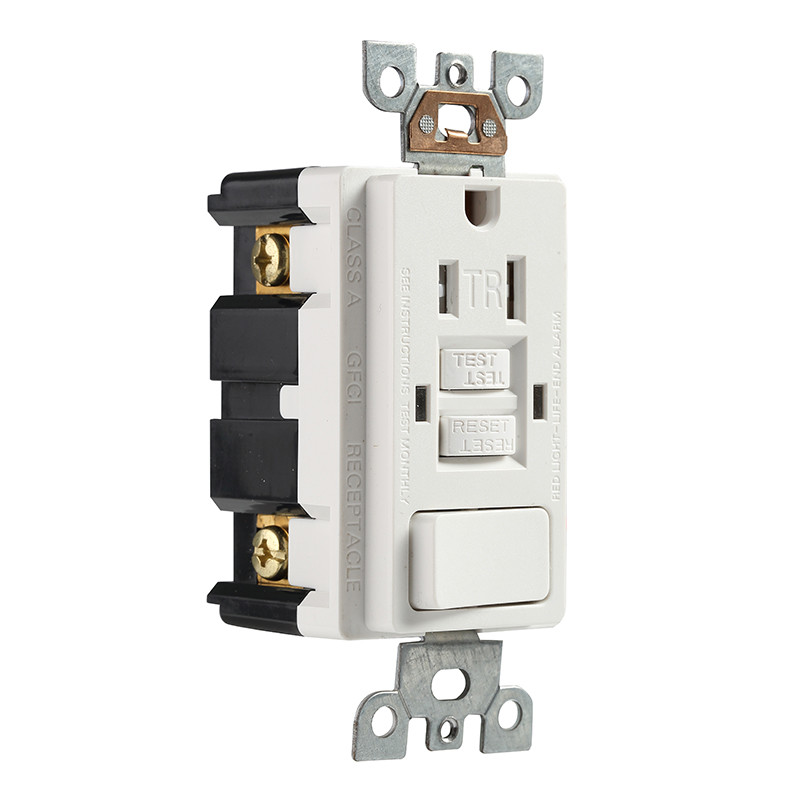

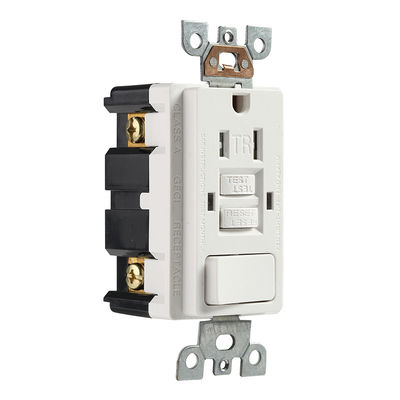

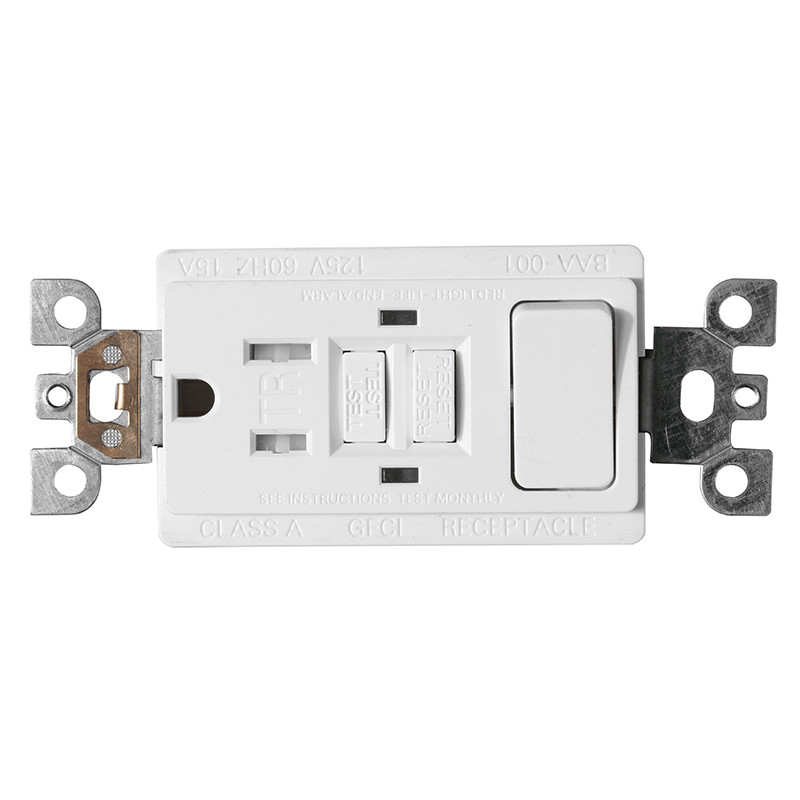

Tamper Resistant 15A GFCI Electrical Outlet With LED Indicator
Product Specifications
| Attribute | Value |
|---|---|
| Trip Level | 4-6mA |
| Voltage | 125V 60Hz |
| Installation Type | Wall Mount |
| Operating Temperature | -20-66°C |
| Insulation resistance | 500MΩ |
| Grounding | Self-grounding |
| Trip time | 0.025s |
| Material | PC+ABS |
| Rating current | 15A |
Product Overview
This GFCI socket with LED indicator offers advanced protection against electrical shocks and is a crucial component for maintaining electrical safety in residential and commercial settings. Featuring a high switch life of 100,000 cycles, it ensures long-term reliability for frequent use.
Designed for wall mount installation, this outlet integrates seamlessly into various indoor environments. The wall-mount design provides convenient access while enhancing space aesthetics.
With a rapid trip time of just 0.025 seconds, this GFCI outlet quickly disconnects power in the event of a ground fault, minimizing exposure to dangerous electrical currents.
The 15A rating makes it suitable for powering typical electronics and appliances safely. Its self-grounding capability eliminates the need for additional grounding wires, simplifying installation while ensuring secure connection to the grounding system.
Key Features
- Product Name: GFCI Electrical Outlet
- Insulation resistance: 500MΩ
- Trip Level: 4-6mA
- Trip time: 0.025s
- Installation Type: Wall Mount
- Switch life: 100,000 cycles
Technical Parameters
| Trip Level | 4-6mA |
| Amperage | 15A |
| Mechanical life | 6,000 cycles |
| Installation Type | Wall Mount |
| Number Of Outlets | 1 |
| Grounding | Self-grounding |
| Operating Temperature | -20-66°C |
| Self test | Yes |
| Voltage | 125V 60Hz |
| Trip time | 0.025s |
Applications
- Residential: Ideal for kitchens, bathrooms, garages, and outdoor spaces where protection from electrical shocks in wet environments is crucial.
- Commercial: Perfect for offices, retail stores, and workshops, offering reliable electrical safety with quick response to ground faults.
- Industrial: Suitable for environments with electrical equipment and machinery, capable of operating in temperatures from -20-66°C.
- Construction: Excellent for new construction or renovation projects, available for bulk purchase with easy installation.
Orders are typically delivered within 15-20 days with payment accepted via T/T, ensuring smooth transactions for all application scenarios.
