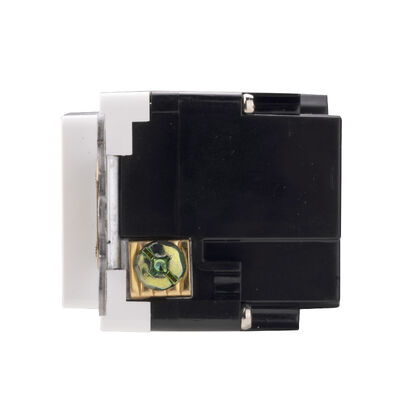

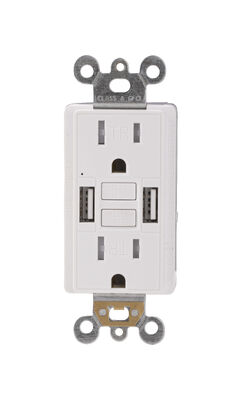

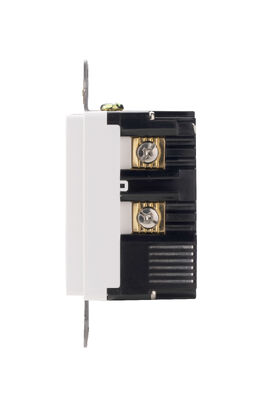

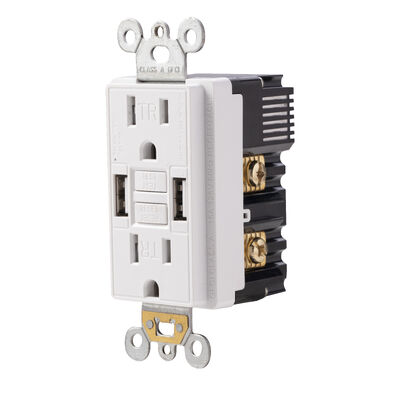

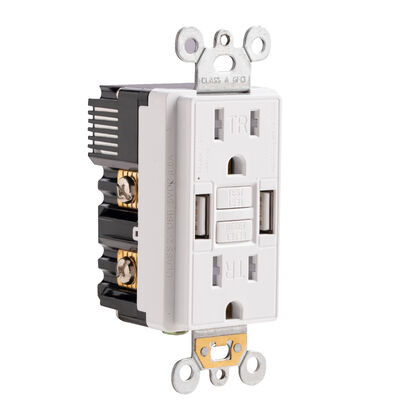

15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KEYGMA |
| Model Number | KG-15TU2 |
| Minimum Order Quantity | 50 |
| Price | $7.80-8.50 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| AC Outlets | 2 Outlets | Rated Current | 15A |
|---|---|---|---|
| Rated Voltage | 125V | USB Ports | 2 Ports |
| USB Output | 5V 4.8A | Trip Level | 5mA ±1mA |
| Flammability Rating | UL94 V-0 | Body Material | Polycarbonate |
| Withstand Voltage | 1500V AC | Mechanical Life | 3000 Times |
| Release Time | ≤25mS | Operating Temperature | -35°C To +66°C |
| Terminal Screws | Plated Steel | Terminal Clamp | Brass |
| Mounting Strap | Galvanized Steel | ||
| Highlight | 15A GFCI Outlet,125V GFCI Receptacle,Self-Test GFCI Socket |
||
Product Description
15A GFCI Combination In-Wall Charger Socket with Self-Test and 5V/4.8A USB Ports
This advanced GFCI combination outlet integrates a 15A/125V AC receptacle with dual USB charging ports, featuring tamper-resistant technology and automatic self-test functionality for enhanced electrical safety.
Key Features
- High-quality thermoplastic construction with improved surge and corrosion resistance (indoor use only)
- Tamper-resistant mechanism protects children from electric shock hazards
- Automatic self-test function with End-of-Life monitoring
- GFCI protection with safe lock function - outlet cannot reset when miswired
- Dual Type A USB ports (5V 4.8A shared) compatible with USB 2.0/3.0 and iPhone 15 charging
- Status indicator LED: Red (correct installation), Green (operational), Flashing Red (requires replacement)
Installation Note: This GFCI USB outlet has a depth of 1.58 inches and requires an extra deep wall box for proper installation.
Technical Specifications
| Amperage | 15 Amp |
| Voltage | 125 Volt |
| Pole | 2 |
| Wire | 3 |
| Grounding | GFCI Ground Fault |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Trip Level | 5mA ± 1mA |
| Current Interrupting | 2 kA |
| Flammability | Rated V-2 per UL94 |
| Operating Temperature | -35°C to +66°C |
| Face Material | 100% pure PC |
| Terminal Screws | Plated Steel |
| Terminal Clamp | Brass |
| Line Contacts | Brass |
| Grounding Screws | Plated steel |
| Mounting Strap Material | Galvanized Steel |
| USB Output | 5V 4.8A |
| Applicable Standards | UL 943, UL 498 |
Performance Characteristics
| Withstand Voltage | 1500V (AC) |
| Mechanical Life | 3000 cycles |
| Fire Rating | UL-94 V 2 |
| Trip Threshold | 4-6mA |
| Release Time | ≤25ms |
| Insertion Force | <178N |
| Pulling Force | <67N |
| Retention | >13N |
| Weight | Approximately 142g |
| Dimensions | 105 × 41 × 47.5 mm |
Packaging Details
| Unit Size | 4.57×2.76×1.85 in (11.6×7.0×4.7 cm) |
| Carton Size | 15.16×10.63×13.39 in (38.5×27×34 cm) |
| Pack Options | 1 Pack |
| Quantity per Carton | 60 pieces |
| Carton Weight | 11.5 kg (25.35 lb) |
