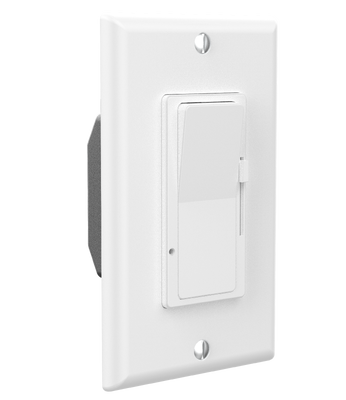

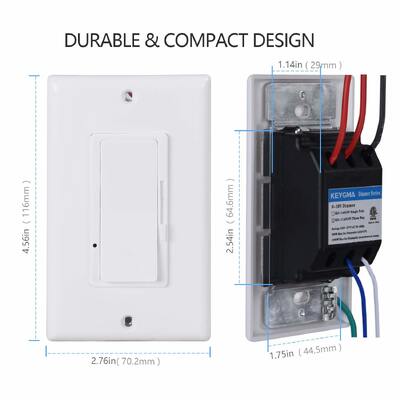

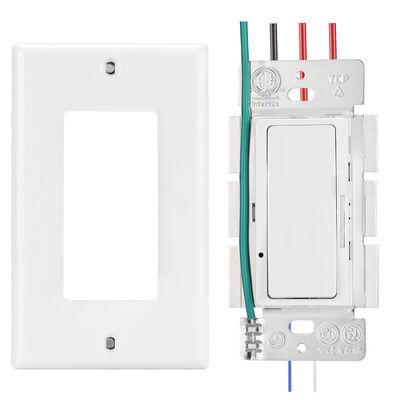

UL Listed 300W 0-10V LED Dimmer Switch Complete Retrofit Solution for Supermarket and Retail Chain Lighting System
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | KEYGMA |
| Certification | UL 1472, CSA C22.2 No.184.1-15, ETL Listed, Title 24 Compliant |
| Model Number | KD-1A010V |
| Minimum Order Quantity | 60 Pieces |
| Price | USD 8.5-10.5 / Piece |
| Packaging Details | 60pcs/CTN, export-grade corrugated carton with individual foam insert, palletized for chain-wide distribution |
| Delivery Time | 3-7 working days for stock orders, project bulk orders negotiable |
| Payment Terms | T/T,Western Union |
| Supply Ability | 5000 Pieces per Day |
Product Details
| Dimmer Type | 0-10V Dimmer Switch | Input Voltage | AC 100-277V |
|---|---|---|---|
| Maximum LED Load | 300W | Dimming Range | 5%-100% Flicker-Free |
| Wire Application | Single Pole & 3-Way | Neutral Wire Required | No Retrofit Friendly |
| Enclosure Material | PC+ABS UL94-V0 Flame Rated | Operating Temperature | -10°C To 40°C |
| Energy Code Compliance | Title 24, ASHRAE 90.1 | Fixture Compatibility | LED Troffer, High-Bay, Linear, Downlight, Strip Light |
| Application | Supermarket Aisles, Retail Floors, Warehouse, Cold Storage | Warranty | 5 Years Standard, Extended Available For Chain Contracts |
| Maximum INC/Halogen Load | 1000W | ||
| Highlight | US Canada supermarket dimmer retrofit,Title 24 compliant lighting control,UL chain store dimming package |
||
Product Description
UL Listed 300W 0-10V LED Dimmer Switch Complete Retrofit Solution for Supermarket and Retail Chain Lighting System
The KD-1A010V is a cETLus Listed 0-10V dimmer switch engineered for supermarket and retail chain lighting retrofit projects. Designed to work with your existing or new LED troffers, high-bays, and linear aisle lighting, this dimmer delivers 5%-100% smooth dimming that meets Title 24 and ASHRAE 90.1 energy code requirements. The no-neutral-wire design eliminates the biggest pain point in retrofit installations enabling your electrical contractor to complete the work faster and at lower labor cost. From single-store upgrades to multi-location chain-wide rollouts, we provide bulk deployment packaging, extended warranty options, and dedicated technical support to keep your project on schedule.
Energy Savings & Code Compliance
- 5%-100% flicker-free dimming adjusts light levels to match store operating hours and daylight harvesting strategies
- Title 24 (California) and ASHRAE 90.1 compliant for new construction and major retrofit permit submissions
- Typical 30-50% lighting energy reduction when paired with occupancy sensors and daylight dimming schedules
- 300W LED load capacity controls multiple aisle fixtures on a single dimmer reducing total device count per store
- 100-277V universal input eliminates confusion between US 120V and 277V commercial circuits
Built for Retail Operations
- No neutral wire required means retrofit in older commercial buildings without opening walls or pulling new conductors
- Single pole and 3-way wiring supports multi-location control at both ends of long supermarket aisles
- UL94-V0 flame-rated PC+ABS enclosure ensures safe operation above dropped ceilings and in plenum spaces
- Compatible with all major 0-10V LED drivers.
- Durable aluminum yoke withstands repeated use in high-traffic retail environments
- Available in White, Ivory, and Almond faceplate colors to match existing wall plates and store decor
Chain Deployment Support
- Bulk packaging palletized and labeled per store for streamlined distribution to multiple locations
- 5-year standard warranty with extended options for chain-wide contracts
- Dedicated project manager assigned for rollouts of 10 stores or more
- Pre-shipment store-specific packing lists and installation documentation included
- Post-installation technical support hotline for your electrical contractors
Technical Specifications
| Dimmer Type | 0-10V Dimmer Switch |
| Input Voltage | AC 100-277V |
| Max Load LED | 300W |
| Dimming Range | 5%-100% Flicker-Free |
| Wire Application | Single Pole & 3-Way |
| Neutral Wire | Not Required |
| Enclosure | PC+ABS UL94-V0, Aluminum Yoke |
| Operating Temperature | -10°C to 40°C |
| Certification | UL 1472, CSA C22.2, ETL Listed, Title 24 |
