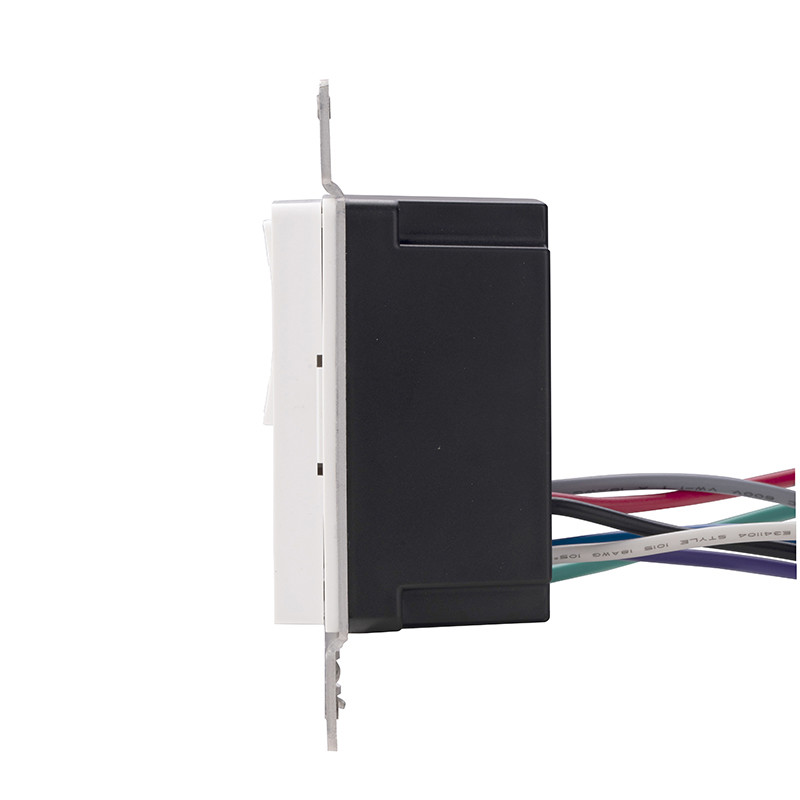

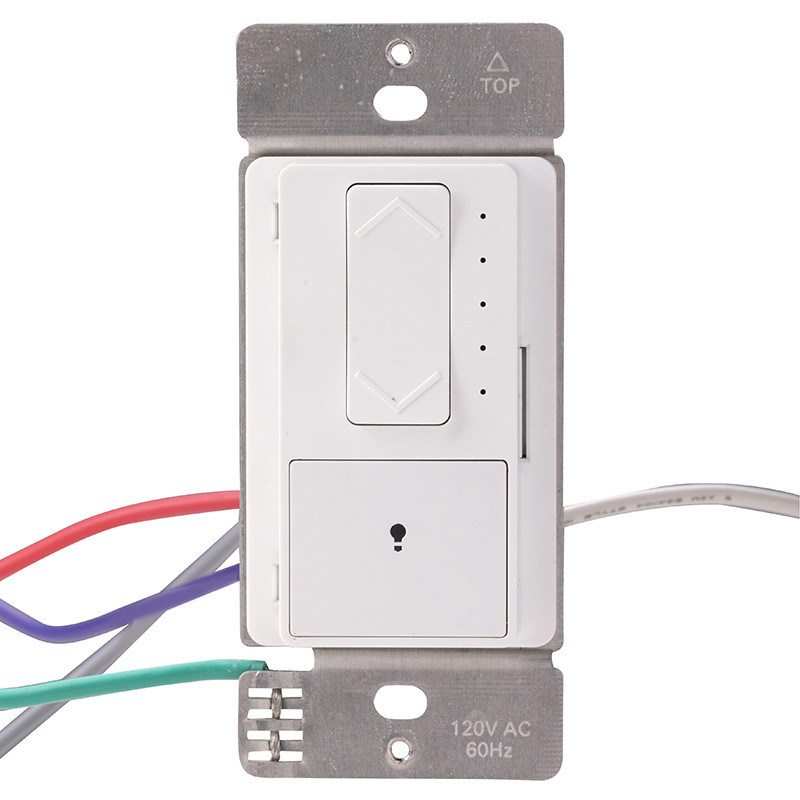

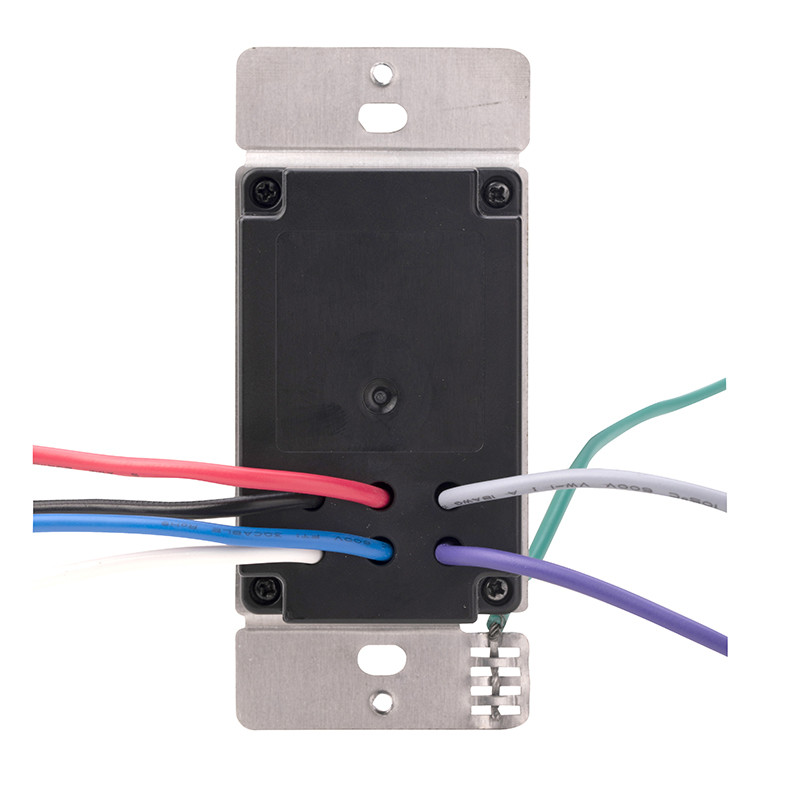

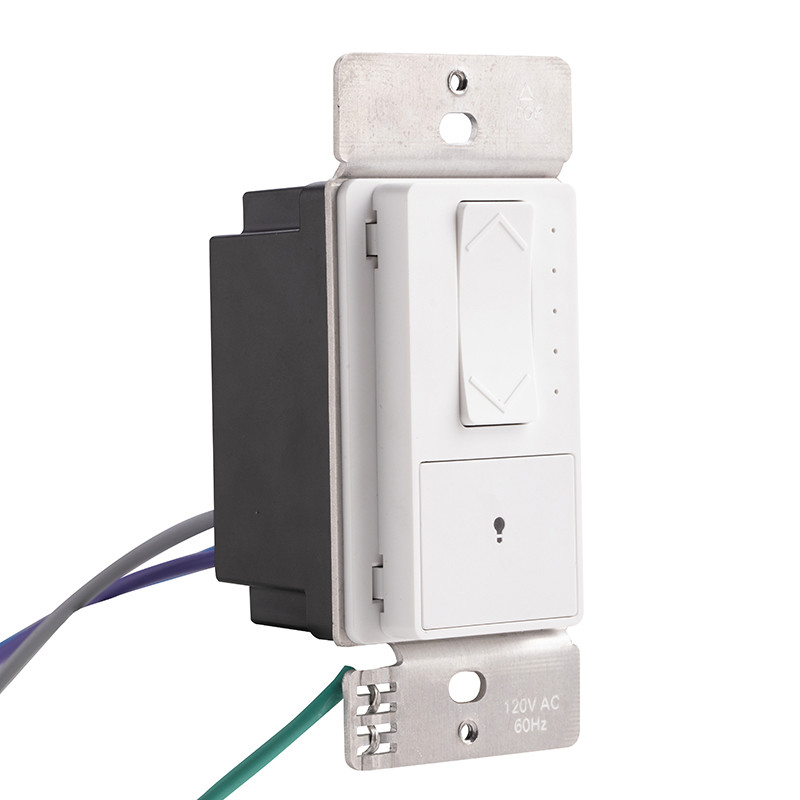

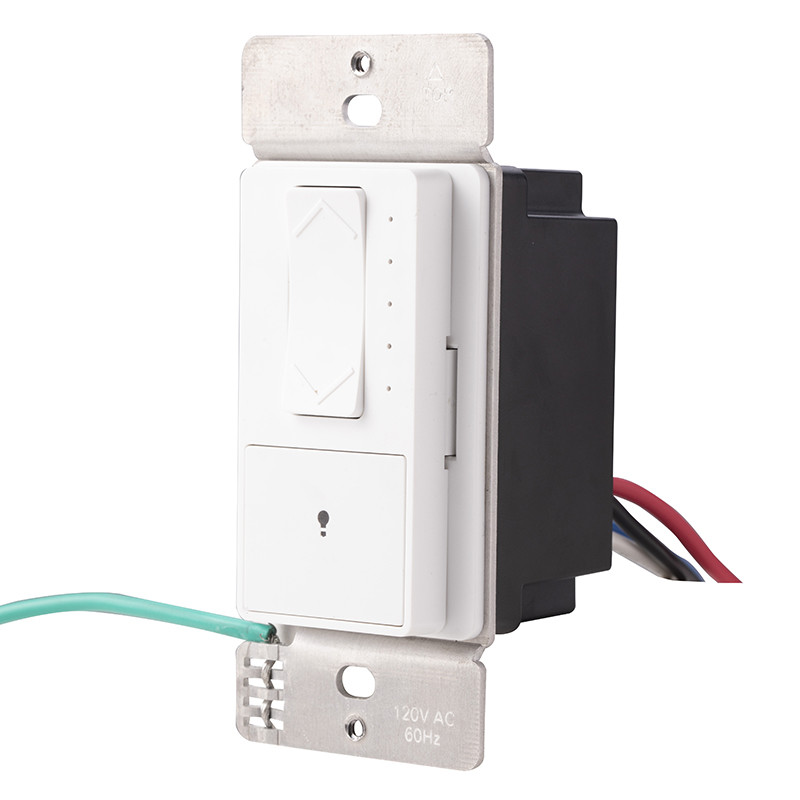

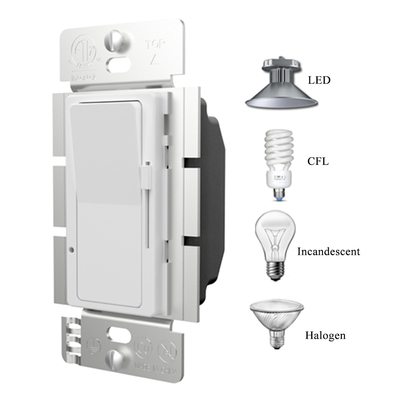

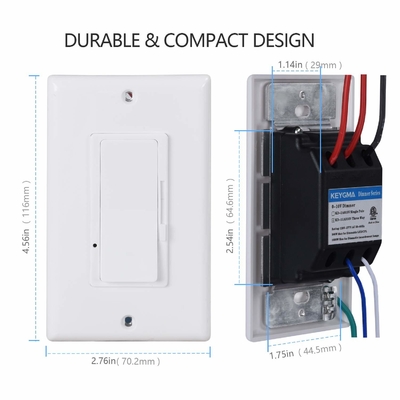

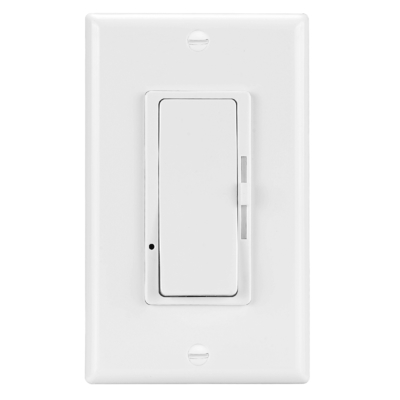

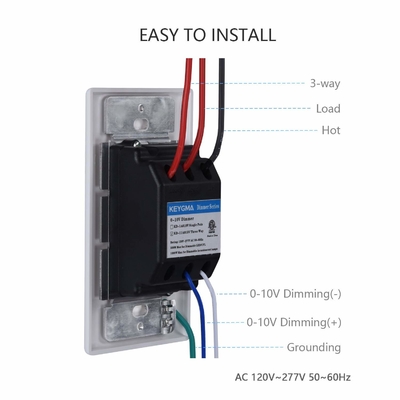

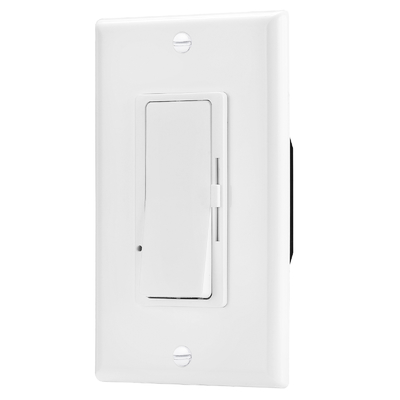

110-277V Electrical Wall Type 0-10V LED Dimmer Controller Dimmable Light Switch

A 0-10V driver, also known as a 0-10V dimmable LED driver, is a power supply that uses a low-voltage DC signal to control the brightness of an LED light fixture. This type of driver is commonly used in commercial and theatrical lighting systems. The '0-10V' refers to the voltage range of the control signal, where:

10V = 100% brightness (full light output)

0V = 0% brightness,ours is normally 5% to provent the driver always work on when slider at the bottom. (light is off or at its minimum level, depending on the driver's programming)

A compatible 0-10V dimmer is an electronic controller specifically designed to produce this 0-10V DC control signal. When you adjust the dimmer's slider or knob, it sends a corresponding voltage to the driver, which then adjusts the light's output accordingly.

You cannot use a standard triac dimmer (the type of dimmer commonly used for incandescent bulbs) with a 0-10V driver. Triac dimmers work by rapidly cutting off the AC power waveform, a process called phase-cutting. This type of signal is incompatible with a 0-10V driver and can cause the driver to fail, flicker, or behave erratically.

0-10V dimmers generally provide excellent performance, especially for commercial and large-scale lighting applications. They offer smooth, precise, and flicker-free dimming, but they do have some considerations regarding installation.

Key Performance Advantages

Smooth and Flicker-Free Dimming: Unlike phase-cut dimmers (the kind used for incandescent bulbs), 0-10V dimmers control a low-voltage DC signal rather than the high-voltage AC power. This allows for a much smoother dimming curve, often all the way down to 1% or even 0.1% of the light's output, without the flickering or buzzing issues common with other dimming methods.

High Precision: The linear relationship between the voltage and light output (e.g., 5V equals 50% brightness) provides very precise control over light levels, which is crucial for creating specific ambiances in restaurants, theaters, or offices.

Scalability: A single 0-10V dimmer can control a large number of fixtures simultaneously, making it ideal for managing lighting in expansive areas like warehouses, parking lots, and large commercial spaces. Since the dimmer isn't directly handling the full electrical load, it can control thousands of watts on one switch.

Energy Efficiency: By allowing you to finely tune light levels, 0-10V dimmers enable significant energy savings. Using only the light you need reduces electricity consumption and can extend the lifespan of your LED fixtures.

Compatibility: 0-10V dimming is a widely recognized industry standard (IEC 60929 Annex E), ensuring good compatibility between different manufacturers' dimmers and LED drivers.

Datasheet of the 0-10V Dimmer Switch
